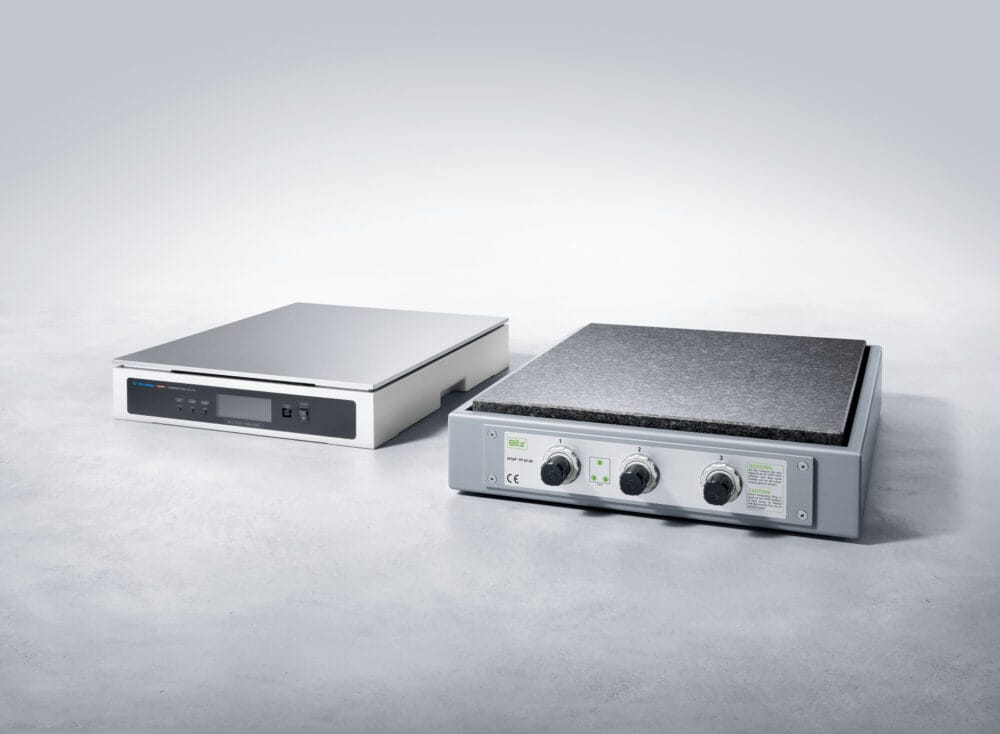

BILZ - Table top platforms

When precision is crucial - whether it's a microscope, a scale or an interferometer - a stable and vibration-free work surface is a must. Bilz offers a wide range of passive and active vibration isolation benchtop platforms, designed to meet the requirements of everything from industrial laboratories to cleanroom environments.

Benefits & features

  • Protects sensitive measuring instruments: Prevents ambient vibrations from affecting accuracy.
  • Large selection: From self-sufficient passive platforms to advanced, actively regulated solutions.
  • Low natural frequency: Provides high insulation performance even at low interference levels.
  • Integrated air suspension: All models use FAEBI® or BiAir® springs - proven for their reliability and performance.
  • Cleanroom-compatible materials and finishes: RAL 7037 or aluminium plates with closed casings.

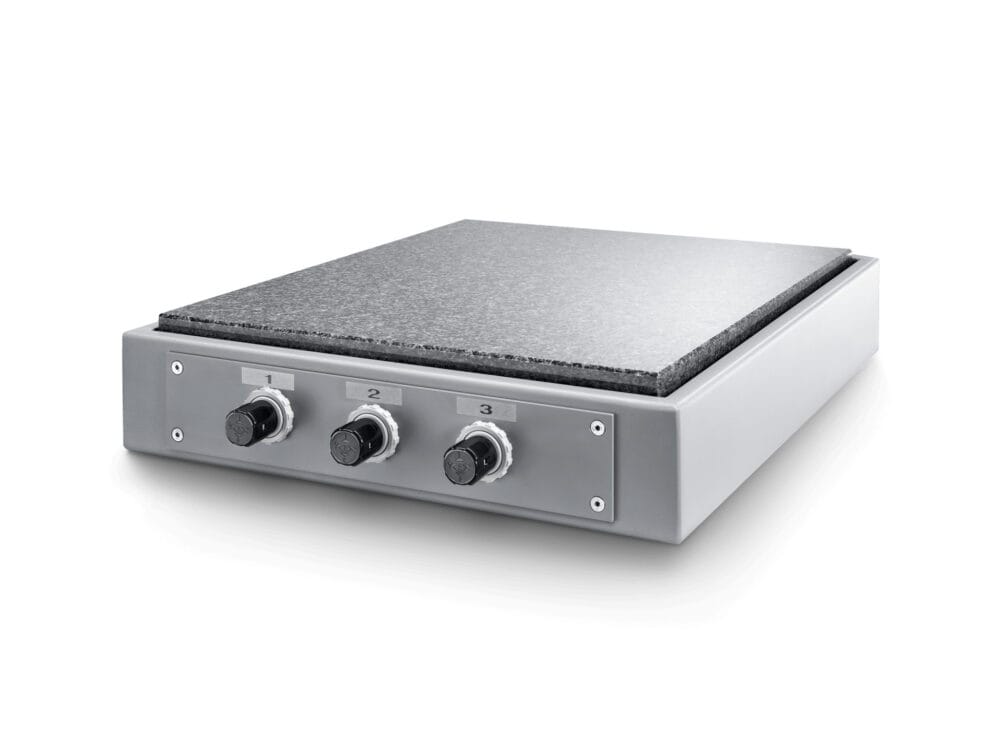

VITAP®-F & FP - Self-powered or compressed air-fed passive platforms

VITAP-F is a fully autonomous platform with FAEBI® rubber air springs and hand pump - ideal when external compressed air is not available.
 VITAP-FP instead, has finely adjustable height through external compressed air and integrated regulators for more precise level control.

Common characteristics:

  • Load capacity: 600-1 300 N
  • Vertical natural frequency: 4.5-6 Hz
  • Platform sizes:
    • 500×400 mm (type 50-40)
    • 600×500 mm (type 60-50)
  • Colouring: RAL 7037, dust grey
  • Compressed air:
    • F: self-priming (hand pump included)
    • FP: 4 bar via compressed air network

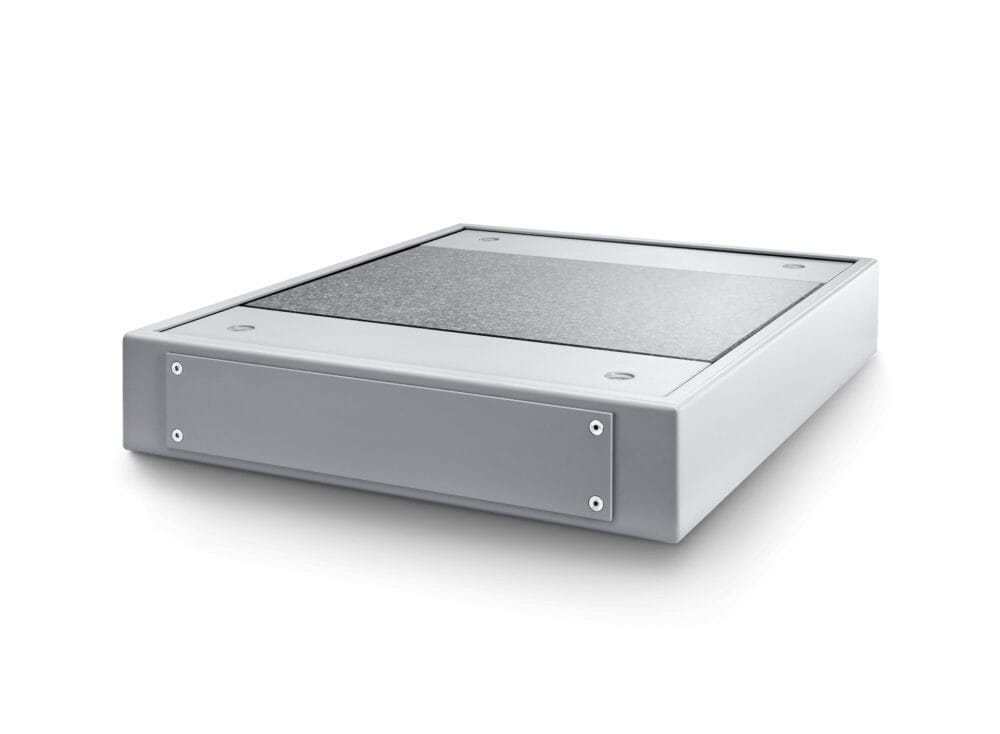

VITAP®-BM - Mechanical-pneumatic level control with BiAir® springs

VITAP-BM combines high-performance BiAir® diaphragm springs with automatic level control via MPN. The low natural frequency of 3 Hz provides superior isolation at low vibrations.

Key characteristics:

  • Load capacity: 750-2 000 N
  • Vertical natural frequency: 3 Hz
  • Platform sizes:
    • 500×400 mm
    • 600×500 mm
  • Height: 98 ± 1.5 mm
  • Compressed air: 6 bar
  • Model variations:
    • a = low load (750-1 500 N)
    • b = high load (1 500-2 000 N)

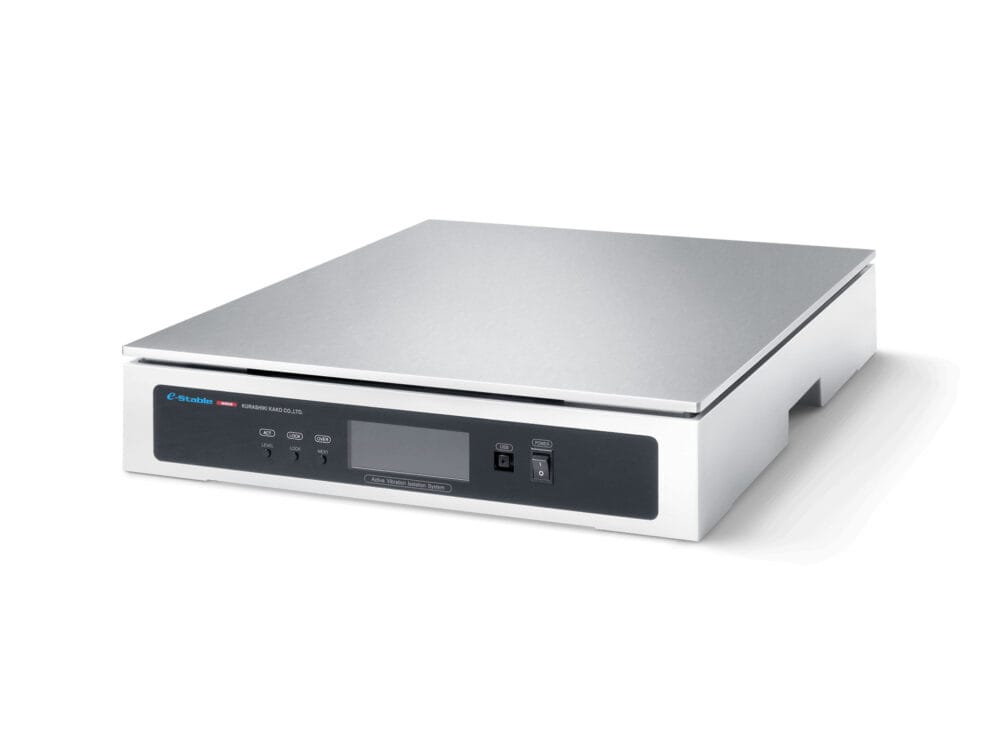

 e-stable mini - Active 6DOF platform with micron precision

e-stable mini is an advanced active table platform with voice coil actuators and real-time control in six degrees of freedom (DOF) - ideal for optics, microscopy and sub-nanometre applications.

Key characteristics:

  • Type of governance: Voice coil actuators (active)
  • DOF: 6 (all actively regulated)
  • Automatic functions:
    • Self-adjustment and locking at the touch of a button
    • LCD screen for spectrum and vibration display
  • Cleanroom compatible: Yes - aluminium plate and sealed enclosure
  • No compressed air needed
  • Electricity connection: 1-phase, 85-230 V, 50/60 Hz
  • Models:
    • 450F: 400×500×80 mm, max load 120 kg
    • 560F: 500×600×84 mm, max load 100 kg
