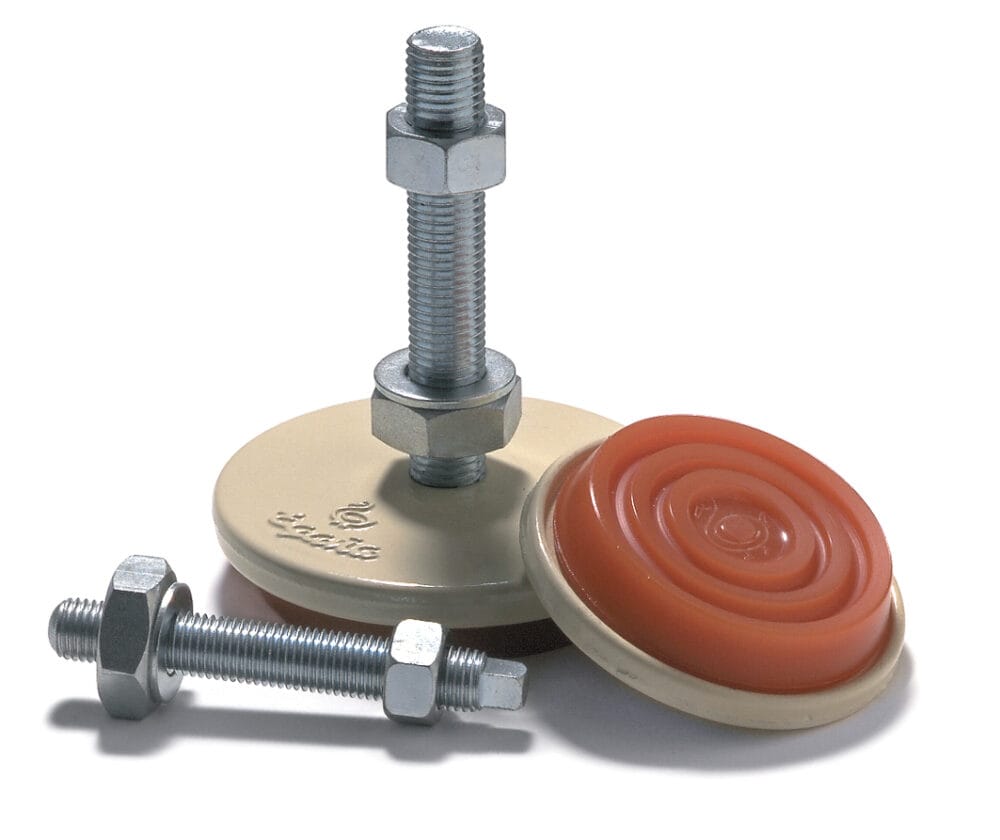

Machine foot

Machine feet are used for vibration- and structure-borne sound-isolated machine installations. The maintenance-free machine feet ensure easy and precise levelling of machines and are available in many different designs.

The appropriate size and insulation pads are selected depending on the application and load. The levelling range is dependent on the selected screw length and can be adjusted according to your individual requirements.

General information on trade-off elements

Machine feet levelling elements are used for vibration and structure-borne noise isolated machine installation. The maintenance-free machine feet ensure easy and precise levelling of machines and are available in many different designs. The appropriate size and isolation pads are selected depending on the application and load. The levelling range can be adjusted depending on the selected bulk length and according to individual requirements.

The type of insulation boards used is indicated in the type description, e.g. BNSH 80/50 is equipped with insulation board B50, BNVS 50/30W is equipped with B30W, etc.
The specified maximum load consists of the static and dynamic load of the machine.
The optimum insulation effect is achieved at about 80-90 % of the specified maximum load.
Permissible temperature range: -20 °C to +80 °C
Applications include: lathes, milling machines, grinding machines, presses, punches and various other types of machines or equipment where levelling and damping are necessary.
