BILZ - Vibration isolated tables

When working with sensitive measuring instruments, optical systems or advanced analysis equipment, stability is crucial. Small vibrations from the environment - from footsteps, door knocks or nearby machinery - can affect both results and repeater accuracy. Bilz vibration-isolated laboratory benches are designed to eliminate these disturbances and create a controlled and reliable working environment.

Benefits & features

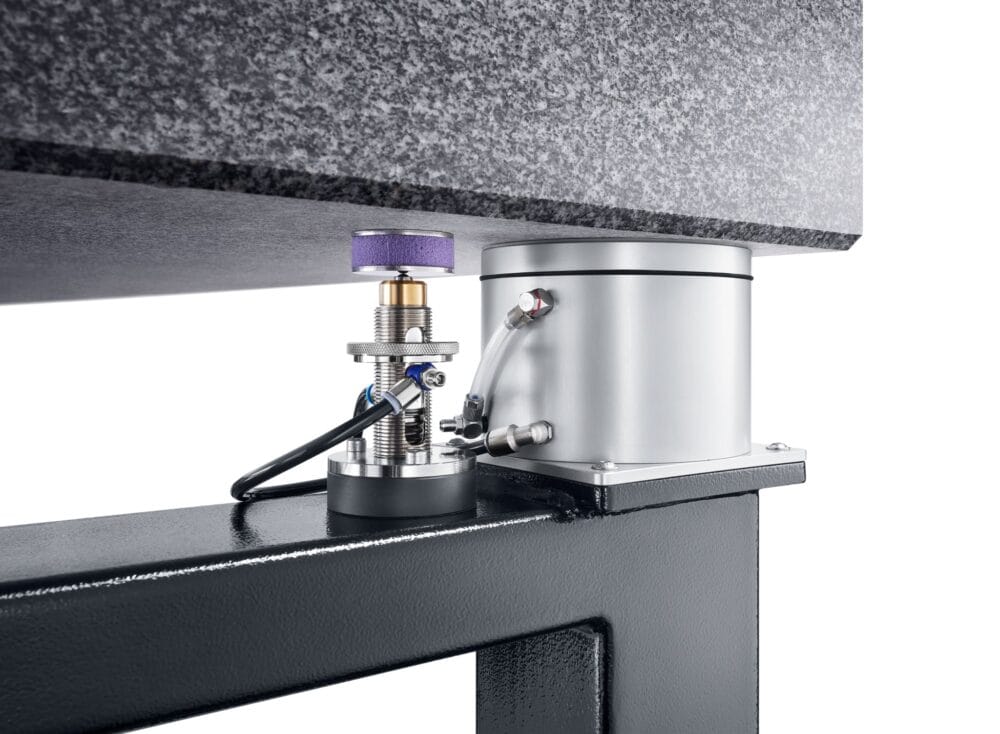

  • Effective vibration isolation thanks to advanced BiAir® air springs with mechanical-pneumatic level control
  • Precise level control even with load changes - up to ± 0.01 mm accuracy
  • Trouble-free operation without magnetic fields, heat generation or electricity dependence
  • Customisable structures for laboratories, cleanrooms, measuring stations or medical technology
  • Robust construction with hardstone or honeycomb tops - durable and stable over time
  • Suitable for sensitive applications such as microscopy (AFM, SEM), interferometry, scales, laser optics and more

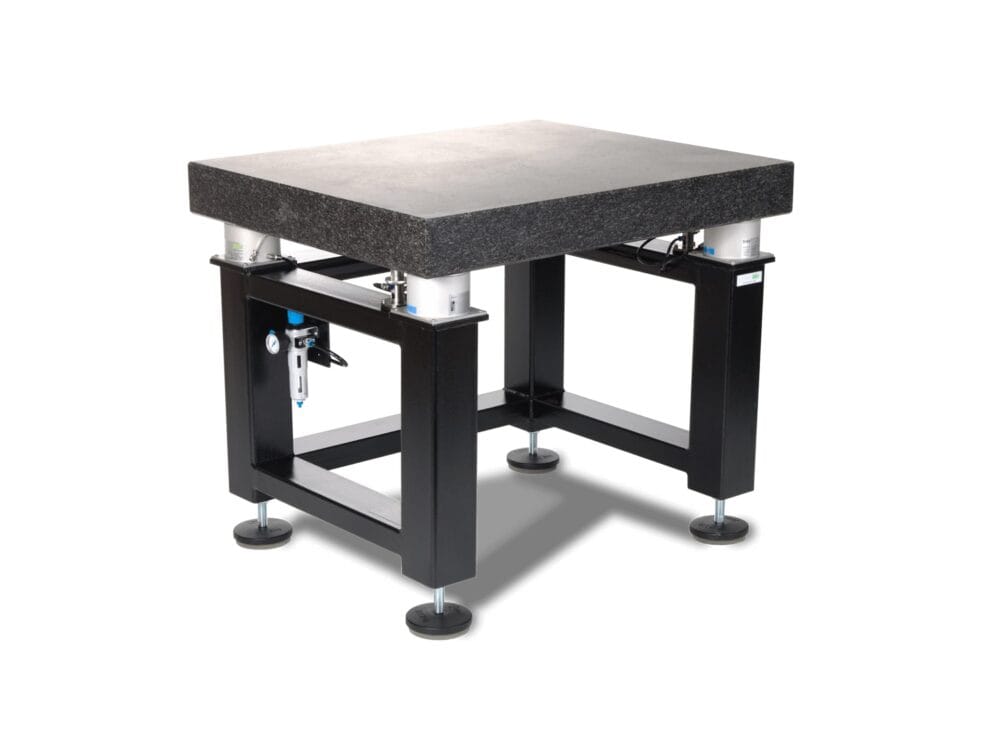

LTH series - Hard Stone

Solid tables with hard stone top for stability and cushioning

The Bilz LTH series combines a ground granite slab with advanced air spring technology for exceptional vibration isolation. Thanks to different types of BiAir® springs, you can tailor the performance to the requirements of the application.

 BiAir®-ED - for stable standard insulation

  • Vertical natural frequency: 2.5-3 Hz
  • Horizontal frequency: 2.8-3.5 Hz
  • Level control: Mechanical-pneumatic, ± 0.1 or ± 0.01 mm
  • Sizes: From 600 × 500 mm to 2 000 × 1 000 mm
  • Load capacity: 2 500 N - 28 000 N
  • Typical applications: General precision work, measuring tables, laboratory environments

 BiAir®-OC - for improved insulation (lower vertical frequency)

  • Vertical natural frequency: about 2 Hz
  • Suitable for: AFM, interferometry and low-dynamic environments with high isolation requirements
  • Other characteristics: Same frame, level control and sizes as ED version
  • Maximum load: up to 7 000 N

BiAir®-PAS - for advanced horizontal insulation

  • Vertical natural frequency: about 2 Hz
  • Horizontal frequency: about 1.2 Hz thanks to pendulum suspension
  • Perfect for: High-precision equipment that is particularly sensitive to horizontal movements
  • Maximum load: up to 7 000 N
  • Sizes: From 600 × 500 mm up to 1 200 × 800 mm

 LTO Series - Optical Table Top

Professional honeycomb tops for optics, photonics and microscopy

The Bilz LTO series is optimised for optical experiments and sensitive electronics. With honeycomb tops (HD and HDT), light weight is combined with excellent self-resonance damping. Also available in cleanroom versions with stainless steel underside.

BiAir®-ED - standard solution with good insulation

  • Vertical frequency: 2.5-3 Hz
  • Horizontal frequency: 2.8-3.5 Hz
  • Top discs:
    • HD: without thread inserts
    • HDT: with threaded inserts
  • Sizes: from 900 × 750 mm to 3 000 × 1 500 mm
  • Maximum load: up to 7 500 N

BiAir®-OC - better insulation at low dynamics

  • Vertical frequency: about 2 Hz
  • Horizontal: 2.8-3.5 Hz
  • Use: Microscopy, laser technology and vibration sensitive optics

BiAir®-PAS - maximum horizontal damping

  • Vertical frequency: about 2 Hz
  • Horizontal: about 1.2 Hz
  • Pendulum springs for advanced isolation also in X and Y direction
