Oscillating brackets

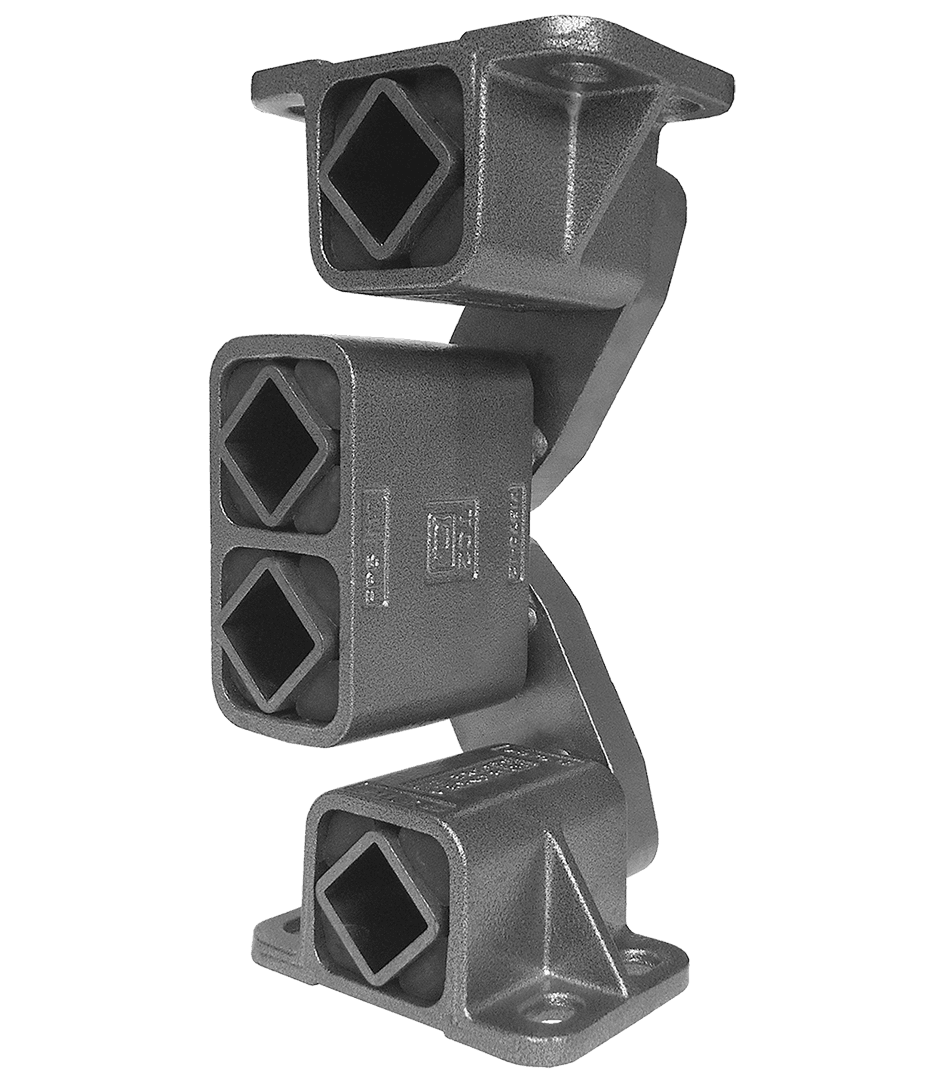

Oscillating mounts are mechanical components that use elastic deformation of four rubber cylinders enclosed between two steel profiles with 45° angular rotation. This clever design makes them very versatile as springs, shock absorbers and anti-vibration mounts.

Thanks to their large working range (±30° torsion), they work perfectly in applications where movement, shocks and vibrations occur. The fasteners can withstand harsh environmental conditions and remain functional even in extreme temperatures and dirty working environments.

Benefits & features

  • Flexible movement tolerance:
     Torsion angle up to ±30° depending on load and frequency.
  • Multifunctional use:
     Can act as a spring, shock absorber, decelerator, support or vibration isolator.
  • Maintenance-free operation:
     No lubricants are needed. Rubber components are self-supporting and dimensionally stable.
  • Temperature resistance:
     Withstands operating environments from -40 °C to +80 °C.
  • Resistant to environmental influences:
     Insensitive to dirt, water and UV light - ideal for outdoor use and humid environments.
  • Vibration control:
    Depending on the installation, the elements can both amplify or dampen vibrations at specific frequencies.

General information about - Oscillating mounts

  • The design is based on two square elements rotated 45° in relation to each other.
  • Four parallel rubber cylinders allow elastic torsion in several directions.
  • Maximum rotation is ±30° from rest position; angle decreases with higher frequency
  • The elements are widely used in material handling systems, screening equipment, conveyors and agricultural machinery.
  • Withstands continuous operation under both static and dynamic loads without degradation.
  • Adapted for use in dusty, wet or UV-exposed environments.
  • Mounting options: recessed, side-mounted, horizontal or vertical depending on machine requirements.
  • Easy installation without the need for special tools or adjustments.
  • Long service life thanks to robust rubber compounds and protected metal components.
