Anti-vibration mounts

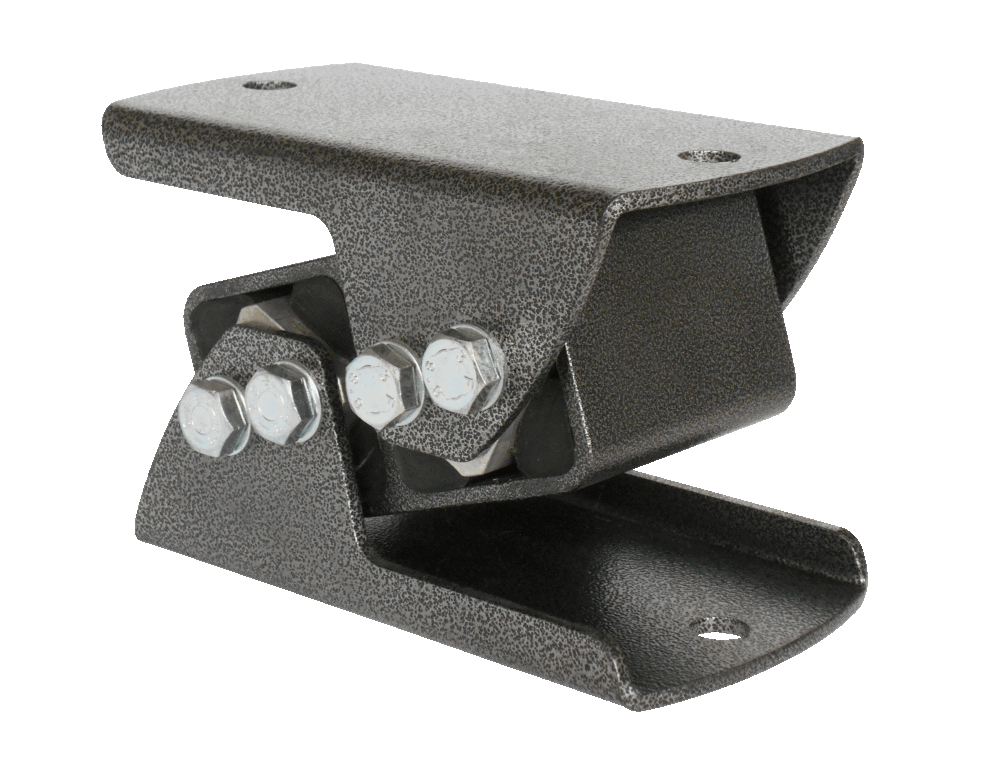

The AN series is designed to effectively dampen vibrations in low to medium frequency machines. With their robust steel and aluminium construction and high performance rubber insulation, AN elements function as both floor supports and wall/ceiling mounted support points. They are particularly suited to applications where vibration isolation is critical to both machine performance and operator health.
Benefits & features
- Versatile mounting:
Can be installed vertically, horizontally or suspended from the ceiling and wall. - Three-dimensional damping:
Isolates vibrations along the X, Y and Z axes for optimal protection. - Long service life:
The rubber components have high resilience with low permanent deformation over time. - Corrosion-protected construction:
Both steel components and fasteners are galvanised or painted for use in harsh environments. - Maintenance-free operation:
Compact and durable design that requires no lubrication or readjustments. - Shock absorption:
Protects sensitive electronics and equipment from shock, impact and vibration.
General information about - Anti-vibration mounts
- High vibration isolation at both low and high frequencies (up to 1000 Hz).
- Installed with all screws in one direction for optimal elasticity.
- Withstands both static and dynamic loads with high dimensional stability.
- The rubber element returns to the rest position with only 3°-5° permanent rotation.
- The maximum load on the X axis is 20 % of the load on the Y axis; the Z axis can withstand twice the load compared to Y.
- Ideal for compressors, washing machines, electrical cabinets, ventilation units and measuring instruments.
- Can be mounted directly on the wall or ceiling without additional support structures.
- The construction is fireproof, mould resistant and weatherproof.
- Components are supplied painted in an oven for increased durability.
- Assembly instructions are included with all models.
